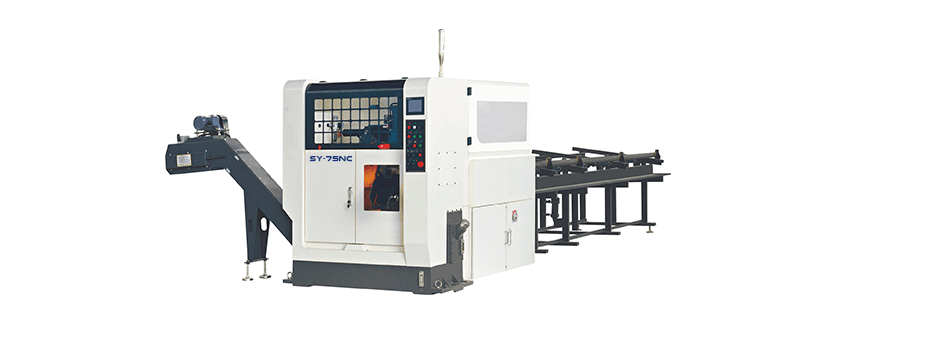

SY-75NC
SmartSmith
| Model: | SY-75NC | ||
| Cutting Capacity | |||
| Bar | 8~72mm | ||
| Angle material | 8~60mm | ||
| Round tube | 8~72mm | ||
| Square tube | 8~60mm | ||
| Head spindle size (Application of TCT tungsten carbide circular saw blade) | ɸ250x2.0mm | ||
| Speed of revolution of cutter | 18~200rpm | ||
| Stepless speed regulation | |||
| Spindle driving motor | 7.5KW | ||
| 4P Variable frequency motor | |||
| Tool gap compensation device | Pneumatic clamping | ||
| Tool Shockproof parallel block | Tungsten carbide | ||
| Tool Chip cleaner | Steel brush disc | ||
| Cut-off feeding way | Rocker type/AC servo | ||
| Clamp method | Hydraulic/Horizontal and vertical | ||

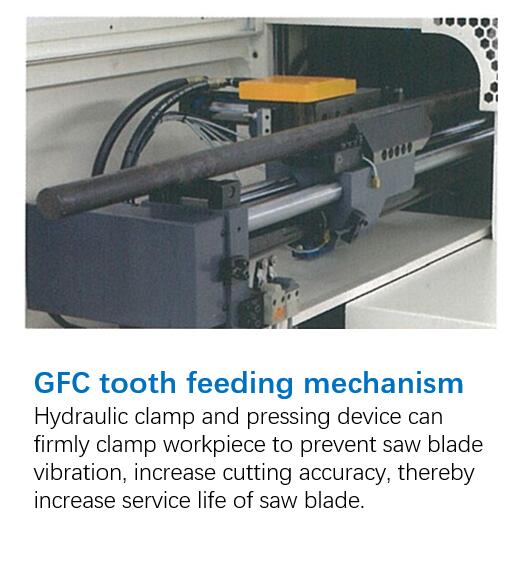

| Sizing feeding (GFC) mechanism | |||
| Sizing feeding driving mode | AC servo motor/Precision ball screw | ||
| Feed clamp mode | Horizontal hydraulic | ||
| End cutting length | 8~99mm | ||
| Residual material length | 55mm(Shortest) | ||
| GFC feeding amount | 4-780mm(Single time) | ||
| /9999(Multi-times) | |||
| Automatic feeding device | |||
| Material length | 2000~6000mm | ||
| Material placement area | 980mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional accessories | ||
| Hydraulic device | |||
| Hydraulic devicing motor | 2.2Kw(3Hp)/4p | ||
| Hydraulic driving pressure | 70kg/cm2(7MPa) | ||
| Oil capacity | 90 liters | ||
| Air Pressure device | |||
| Working air pressure | 4~6kg/cm2(55~85psl) | ||
| Machine size & weight | |||
| size(L x W x H) | 7100x2220x1880mm | ||
| Weight | 2700Kgs | ||
| Equipment & device | |||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||

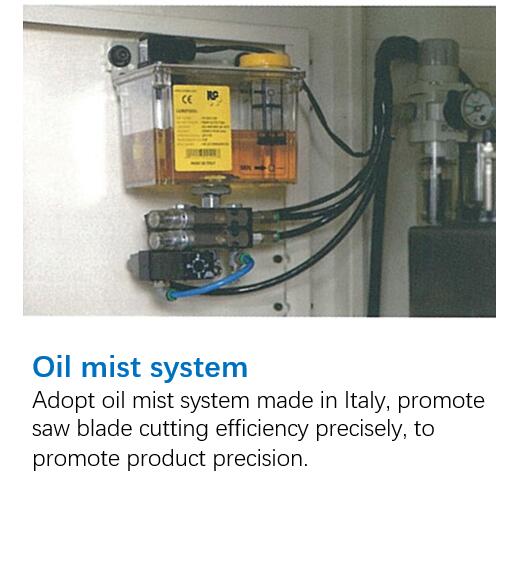

| Oil mist cooling device | Near dry intermittent oil | ||
| Cutting fluid cooling device | 0.09Kw/2p/Cycle cooling | ||
| Working lamp | Quatrz lamp/Waterproof and dustproof | ||
| Model: | SY-75NC | ||
| Cutting Capacity | |||
| Bar | 8~72mm | ||
| Angle material | 8~60mm | ||
| Round tube | 8~72mm | ||
| Square tube | 8~60mm | ||
| Head spindle size (Application of TCT tungsten carbide circular saw blade) | ɸ250x2.0mm | ||
| Speed of revolution of cutter | 18~200rpm | ||
| Stepless speed regulation | |||
| Spindle driving motor | 7.5KW | ||
| 4P Variable frequency motor | |||
| Tool gap compensation device | Pneumatic clamping | ||
| Tool Shockproof parallel block | Tungsten carbide | ||
| Tool Chip cleaner | Steel brush disc | ||
| Cut-off feeding way | Rocker type/AC servo | ||
| Clamp method | Hydraulic/Horizontal and vertical | ||
| Sizing feeding (GFC) mechanism | |||
| Sizing feeding driving mode | AC servo motor/Precision ball screw | ||
| Feed clamp mode | Horizontal hydraulic | ||
| End cutting length | 8~99mm | ||
| Residual material length | 55mm(Shortest) | ||
| GFC feeding amount | 4-780mm(Single time) | ||
| /9999(Multi-times) | |||
| Automatic feeding device | |||
| Material length | 2000~6000mm | ||
| Material placement area | 980mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional accessories | ||
| Hydraulic device | |||
| Hydraulic devicing motor | 2.2Kw(3Hp)/4p | ||
| Hydraulic driving pressure | 70kg/cm2(7MPa) | ||
| Oil capacity | 90 liters | ||
| Air Pressure device | |||
| Working air pressure | 4~6kg/cm2(55~85psl) | ||
| Machine size & weight | |||
| size(L x W x H) | 7100x2220x1880mm | ||
| Weight | 2700Kgs | ||
| Equipment & device | |||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | Near dry intermittent oil | ||
| Cutting fluid cooling device | 0.09Kw/2p/Cycle cooling | ||
| Working lamp | Quatrz lamp/Waterproof and dustproof | ||
Cutting Efficiency | Unit | Bar Type1 | Bar Type2 |
Bar Dia | mm | Φ50 | Φ65 |
Cutting Time | second | 6.8 | 10.8 |
Cutting +Cycling time | second | 9.8 | 13.8 |
Feeding Efficiency | mm/second | 200mm | 200mm |
Length Tolerance | mm | +0.1mm(100mm) | +0.1mm(100mm) |
Verticality Tolerance |
mm |
+0.1mm(100mm) |
+0.1mm(100mm) |
Capacity(8hrs; 95% Usage rate) |
Pcs/8hr |
2790 |
1982 |
Saw Blade Cutting Times |
time |
15290 |
9050 |
Cutting Efficiency | Unit | Bar Type1 | Bar Type2 |
Bar Dia | mm | Φ50 | Φ65 |
Cutting Time | second | 6.8 | 10.8 |
Cutting +Cycling time | second | 9.8 | 13.8 |
Feeding Efficiency | mm/second | 200mm | 200mm |
Length Tolerance | mm | +0.1mm(100mm) | +0.1mm(100mm) |
Verticality Tolerance |
mm |
+0.1mm(100mm) |
+0.1mm(100mm) |
Capacity(8hrs; 95% Usage rate) |
Pcs/8hr |
2790 |
1982 |
Saw Blade Cutting Times |
time |
15290 |
9050 |
n Casting machine body, high rigidity body structure, specially designed for precision cut-off of tube bar;
n Dual-use of TCT super hard saw blade and HSS high-speed steel saw blade, integration of two machines;
n The main clamp adopts three-point clamping of international fashion. Firm and reliable;
n With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;
n With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;

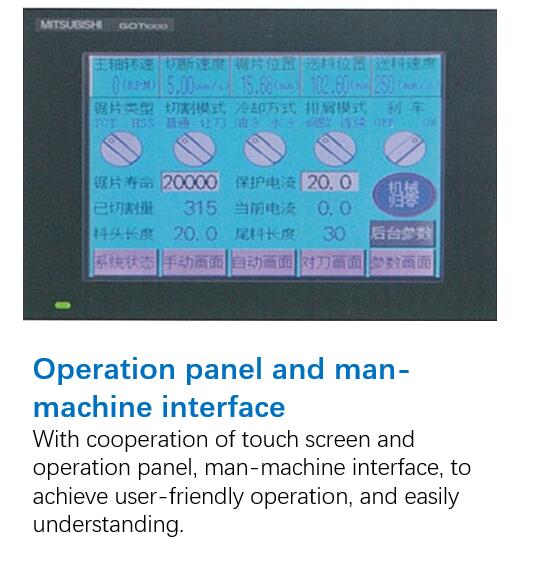

n Button start, dialogue touch input, simple and quick operation.
Some details as below:
n Casting machine body, high rigidity body structure, specially designed for precision cut-off of tube bar;
n Dual-use of TCT super hard saw blade and HSS high-speed steel saw blade, integration of two machines;
n The main clamp adopts three-point clamping of international fashion. Firm and reliable;
n With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;
n With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;
n Button start, dialogue touch input, simple and quick operation.
Some details as below:
