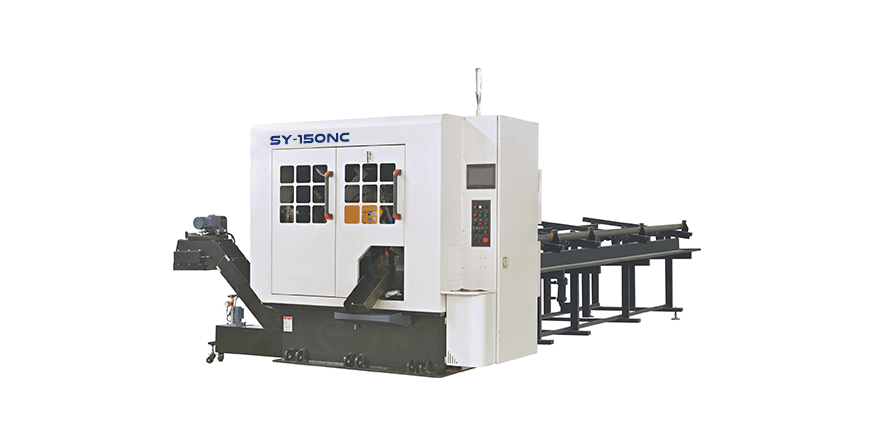

SY-150NC
SmartSmith
| Model: | SY-150NC | ||
| Cutting Capacity | |||
| Bar | 40~150mm | ||
| Angle material | 40~120mm | ||
| Round tube | 40~150mm | ||
| Square tube | 30~120mm | ||
| Head spindle size (Application of TCT tungsten carbide circular saw blade) | ɸ460x2.7mm | ||
| Speed of revolution of cutter | 60~90rmp | ||
| Stepless speed regulation | |||
| Spindle driving motor | 15HP(11KW) | ||
| 6P Variable frequency motor | |||
| Tool gap compensation device | Magnetic powder brake | ||
| Tool Shockproof parallel block | Tungsten carbide | ||
| Tool Chip cleaner | Steel brush disc | ||
| Cut-off feeding way | Linear ramp feed/AC servo | ||
| Clamp method | Hydraulic/Horizontal and vertical | ||

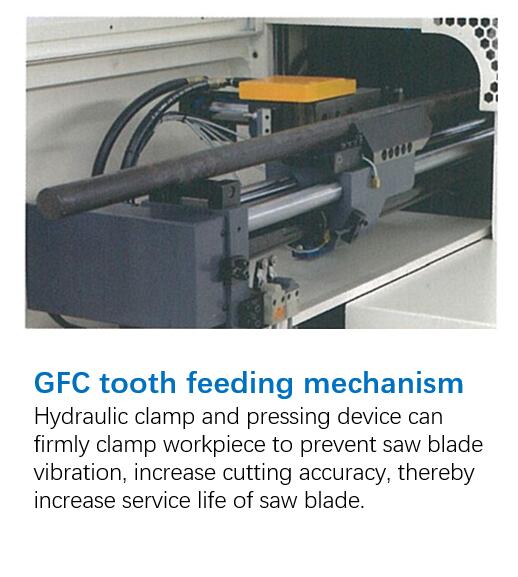

| Sizing feeding (GFC) mechanism | |||
| Sizing feeding driving mode | Japan Mitsubishi AC Servo/grinding grade ball screw | ||
| Feed clamp mode | Horizontal hydraulic | ||
| End cutting length | 8~99mm | ||
| Residual material length | 100mm(Shortest) | ||
| GFC feeding amount | 4-780mm(Single time) | ||
| /9999(Multi-times) | |||
| Automatic feeding device | |||
| Material length | 2000~6000mm | ||
| Material placement area | 2000mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional accessories | ||
| Hydraulic device | |||
| Hydraulic devicing motor | 3.7Kw(3Hp)/4p | ||
| Hydraulic driving pressure | 70kg/cm2(7MPa) | ||
| Oil capacity | |||
| Air Pressure device | |||
| Working air pressure | 5~7kg/cm2(55~85psl) | ||
| Machine size & weight | |||
| size(L x W x H) | 6600x2670x2300mm | ||
| Weight | 5280Kgs | ||
| Equipment & device | |||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | ILC-Lubetool | ||
| Cutting fluid cooling device | 0.09Kw/2p/Cycle cooling | ||
| Working lamp | Quatrz lamp/Waterproof and dustproof | ||
| Model: | SY-150NC | ||
| Cutting Capacity | |||
| Bar | 40~150mm | ||
| Angle material | 40~120mm | ||
| Round tube | 40~150mm | ||
| Square tube | 30~120mm | ||
| Head spindle size (Application of TCT tungsten carbide circular saw blade) | ɸ460x2.7mm | ||
| Speed of revolution of cutter | 60~90rmp | ||
| Stepless speed regulation | |||
| Spindle driving motor | 15HP(11KW) | ||
| 6P Variable frequency motor | |||
| Tool gap compensation device | Magnetic powder brake | ||
| Tool Shockproof parallel block | Tungsten carbide | ||
| Tool Chip cleaner | Steel brush disc | ||
| Cut-off feeding way | Linear ramp feed/AC servo | ||
| Clamp method | Hydraulic/Horizontal and vertical | ||
| Sizing feeding (GFC) mechanism | |||
| Sizing feeding driving mode | Japan Mitsubishi AC Servo/grinding grade ball screw | ||
| Feed clamp mode | Horizontal hydraulic | ||
| End cutting length | 8~99mm | ||
| Residual material length | 100mm(Shortest) | ||
| GFC feeding amount | 4-780mm(Single time) | ||
| /9999(Multi-times) | |||
| Automatic feeding device | |||
| Material length | 2000~6000mm | ||
| Material placement area | 2000mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional accessories | ||
| Hydraulic device | |||
| Hydraulic devicing motor | 3.7Kw(3Hp)/4p | ||
| Hydraulic driving pressure | 70kg/cm2(7MPa) | ||
| Oil capacity | |||
| Air Pressure device | |||
| Working air pressure | 5~7kg/cm2(55~85psl) | ||
| Machine size & weight | |||
| size(L x W x H) | 6600x2670x2300mm | ||
| Weight | 5280Kgs | ||
| Equipment & device | |||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | ILC-Lubetool | ||
| Cutting fluid cooling device | 0.09Kw/2p/Cycle cooling | ||
| Working lamp | Quatrz lamp/Waterproof and dustproof | ||
Calculation sample of cutting bar 20CrMnTi.20CrNiMo
Type | Data | Data |
Dia: mm | ¢150 | ¢100 |
Cutting time cost/pc(s) | 40 | 23 |
Circle time cost(s) | 40+1.5+1.5≈43 | 23+1.5+1.5≈26 |
Cutting area/blade:㎡ | 35 | 35 |
Cutting time/blade: time | 2000 | 4460 |
Cutting area of blade regrinding twice: ㎡ | 50 | 50 |
Total cutting area: ㎡ | 85 | 85 |
Calculation sample of cutting bar 20CrMnTi.20CrNiMo
Type | Data | Data |
Dia: mm | ¢150 | ¢100 |
Cutting time cost/pc(s) | 40 | 23 |
Circle time cost(s) | 40+1.5+1.5≈43 | 23+1.5+1.5≈26 |
Cutting area/blade:㎡ | 35 | 35 |
Cutting time/blade: time | 2000 | 4460 |
Cutting area of blade regrinding twice: ㎡ | 50 | 50 |
Total cutting area: ㎡ | 85 | 85 |

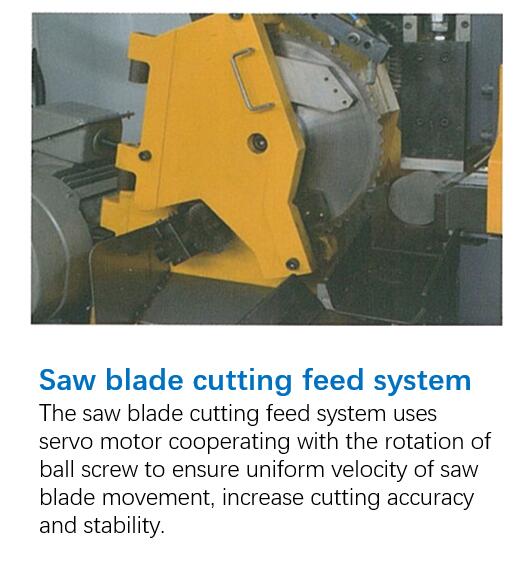

■- Servo feedings and material feeding system cutting are accurate;
■- 5 times cutting speed of traditional sawing machine;
■- The main clamp adopts three-point clamping of international fashion. Firm and reliable;
■- With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;
■- With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;
■- Button start, dialogue touch input, simple and quick operation.
Some details as below.
■- Servo feedings and material feeding system cutting are accurate;
■- 5 times cutting speed of traditional sawing machine;
■- The main clamp adopts three-point clamping of international fashion. Firm and reliable;
■- With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;
■- With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;
■- Button start, dialogue touch input, simple and quick operation.
Some details as below.
