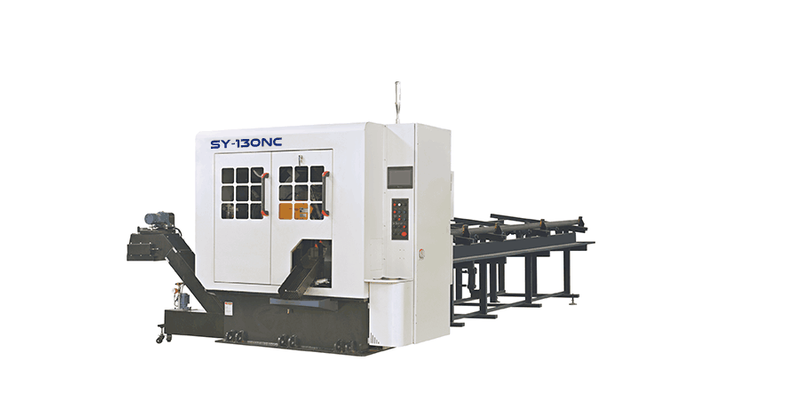

Model:		SY-130NC

Cutting Capacity
Bar		20~130mm
Angle material		20~100mm
Round tube		20~130mm
Square tube		20~100mm
Head spindle size (Application of TCT tungsten carbide circular saw blade)		ɸ360x2.6mm
Speed of revolution of cutter		70~130rpm
		Stepless speed regulation
Spindle driving motor		15HP(11KW)
		4P Variable frequency motor
Tool gap compensation device		Magnetic powder brake
Tool Shockproof parallel block		Tungsten carbide
Tool Chip cleaner		Steel brush disc
Cut-off feeding way		Japan Mitsubishi AC Servo/grinding grade ball screw
Clamp method		Hydraulic/Horizontal and vertical

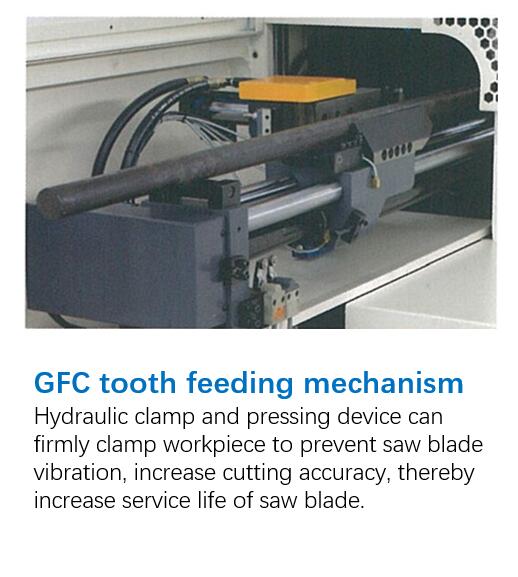

Sizing feeding (GFC) mechanism

Sizing feeding driving mode		Japan Mitsubishi AC Servo/grinding grade ball screw
Feed clamp mode		Horizontal hydraulic
End cutting length		8~99mm
Residual material length		60mm(Shortest)
GFC feeding amount		4-680mm(Single time)
		/9999(Multi-times)
Automatic feeding device

Material length		2000~6000mm
Material placement area		2000mm
Feeding way		Hydraulic lifting material
Angle material slip device		Optional accessories
Hydraulic device

Hydraulic devicing motor		2.2Kw(3Hp)/4p
Hydraulic driving pressure		70kg/cm²(7MPa)
Oil capacity		110 liters
Air Pressure device

Working air pressure		5~7kg/cm²(55~85psl)
Machine size & weight

size(L x W x H)		6600x2670x2000mm
Weight		3900Kgs
Equipment & device

Automatic lubrication system		Timing forced oil
Automatic distributor		Pneumatic reciprocating
Chip conveyor		Chain plate
Oil mist cooling device		ILC-Lubetool
Cutting fluid cooling device		0.09Kw/2p/Cycle cooling
Working lamp		Quatrz lamp/Waterproof and dustproof

Calculation sample of cutting bar 40Cr ￠120x100:

Type	Data
Steel bar mm	￠120x6000
Material	40Cr
Cutting size: mm	￠120x100
Raw material delivery status:	As per Chinese standard
Sawing machine type	130 serial
Cutting method	1pc/time
Circular saw blade size:mm	TCT:￠425x2.7x40
Linear cutting speed: m/min	110-130
Feed per tooth:mm	0.06-0.08
Feed speed: mm/s	4.8
Single pc cutting time:（s）	120/4.8≈25
Clamp and loose time:（s）	1.5
Material conveying: m/min	12
Conveying time cost（s）	100/200≈0.5
Single pc total cutting time（s）	25+1.5+0.5≈27
Cutting qty(pcs)/day	60/27x60x16≈2130
cutting area/blade:㎡	30
Section area/pc㎡	0.0113
Cutting times/blade	2653

■- Servo feedings and material feeding system cutting are accurate;

■- 5 times cutting speed of traditional sawing machine;

■- The main clamp adopts three-point clamping of international fashion. Firm and reliable;

■- With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;

■- With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;

■- Button start, dialogue touch input, simple and quick operation.

Some details as below.
