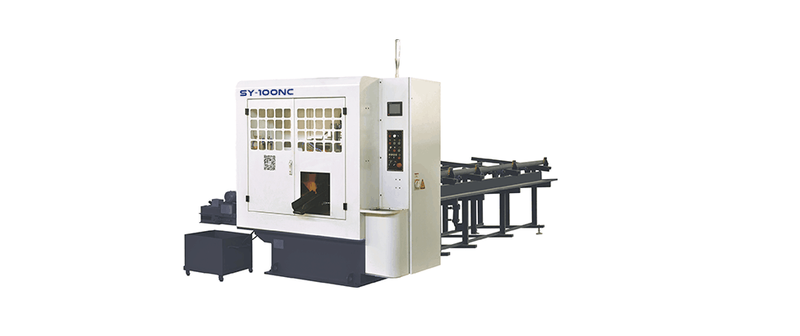

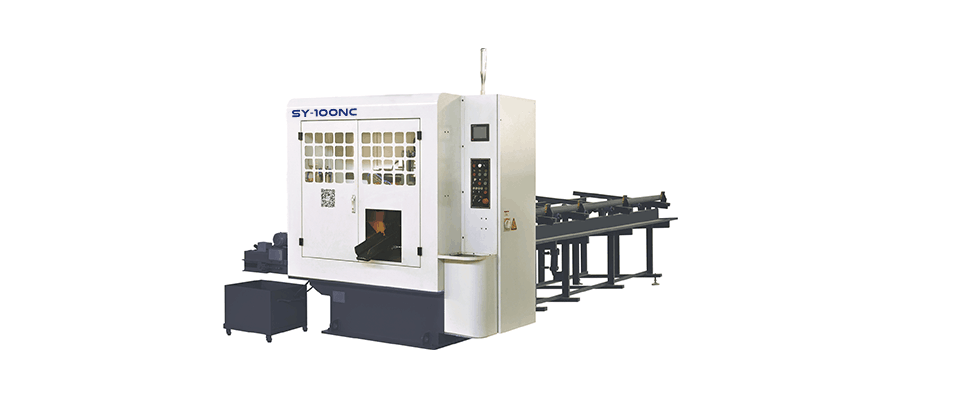

Model:		SY-100NC

Cutting Capacity
Bar		20~100mm
Angle material		20~80mm
Round tube		20~100mm
Square tube		20~80mm
Head spindle size (Application of TCT tungsten carbide circular saw blade)		ɸ360x2.6mm
Speed of revolution of cutter		70~130rpm
		Stepless speed regulation
Spindle driving motor		15HP(11KW)
		4P Variable frequency motor
Tool gap compensation device		Magnetic powder brake
Tool Shockproof parallel block		Tungsten carbide
Tool Chip cleaner		Steel brush disc
Cut-off feeding way		Japan Mitsubishi AC Servo/grinding grade ball screw
Clamp method		Hydraulic/Horizontal and vertical
Sizing feeding (GFC) mechanism

Sizing feeding driving mode		Japan Mitsubishi AC Servo/grinding grade ball screw
Feed clamp mode		Horizontal hydraulic
End cutting length		8~99mm
Residual material length		60mm(Shortest)
GFC feeding amount		4-680mm(Single time)
		/9999(Multi-times)
Automatic feeding device

Material length		2000~6000mm
Material placement area		2000mm
Feeding way		Hydraulic lifting material
Angle material slip device		Optional accessories
Hydraulic device

Hydraulic devicing motor		2.2Kw(3Hp)/4p
Hydraulic driving pressure		70kg/cm²(7MPa)
Oil capacity		110 liters
Air Pressure device

Working air pressure		5~7kg/cm²(55~85psl)
Machine size & weight

size(L x W x H)		6500x2450x2250mm
Weight		3700Kgs
Equipment & device

Automatic lubrication system		Timing forced oil
Automatic distributor		Pneumatic reciprocating
Chip conveyor		Chain plate

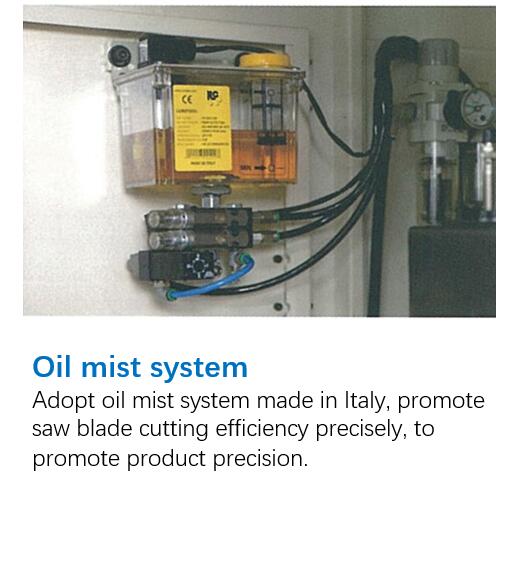

Oil mist cooling device		ILC-Lubetool
Cutting fluid cooling device		0.09Kw/2p/Cycle cooling
Working lamp		Quatrz lamp/Waterproof and dustproof

Cutting Efficiency	Unit	Bar Type1	Bar Type2	Bar Type3
Bar Dia	mm	Φ80；	Φ90；	Φ100；
Cutting Time	Second	12.8	14.4	16
Cutting +Cycling time	Second	16.8	18.4	20
Feeding Efficiency	mm/second	200mm	200mm	200mm
Length Tolerance	mm	0.1mm	0.1mm	0.1mm
Verticality Tolerance	mm	0.1mm	0.1mm	0.1mm
Capacity(8hrs; 95% Usage rate)	pc/8hr	1628	1487	1368
Saw Blade Cutting Times	time	5573	4403	3567

■- Servo feedings and material feeding system cutting are accurate;

■- 5 times cutting speed of traditional sawing machine;

■- The main clamp adopts three-point clamping of international fashion. Firm and reliable;

■- With active deflection feeding, material surface damage can be avoided, and feeding precision is improved;

■- With the cooperation of high rigidity, high precision spindle gear box and backlash elimination mechanism, it stabilizes feeding, significantly improves tools life;

■- Button start, dialogue touch input, simple and quick operation.

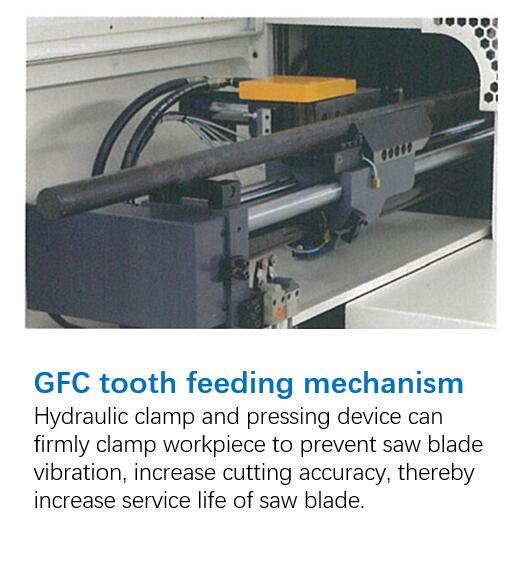

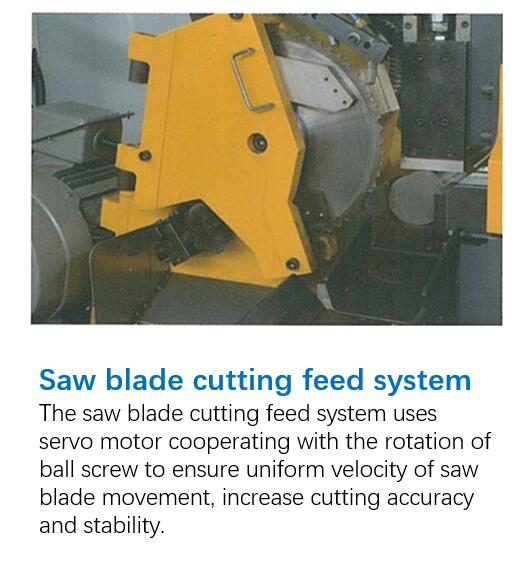

Some details as below.
