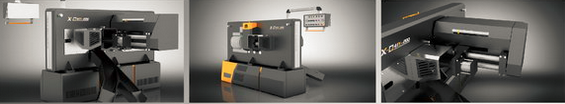

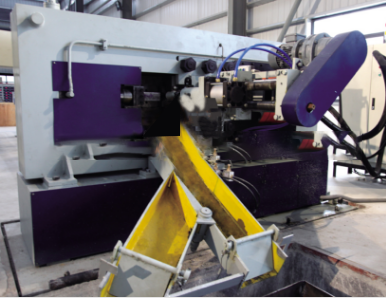

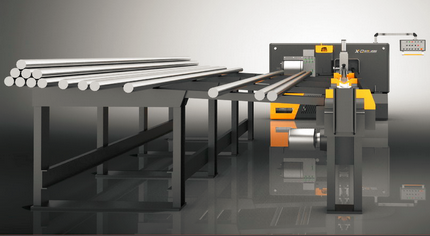

Product use
The line is widely used in bearing, forging, automobile, metallurgy, petroleum, machinery and other industries. We can accord to the need to provide cold shear line and temperature（thermal）Shear line.
Technical Features
Equipment with linkage interlocking function, can realize automatic feeding, automatic feeding, automatic cutting, automatic cutting, automatic finished counting, automatic lubrication, pressure is insufficient, motor overheating, lack of lubrication oil, oil plug ,automatic alarm, automatic shutdown, overload protection and safety protection function.
That body is a steel plate overall welding and the vibration aging treatment, have sufficient strength and rigidity
Advance shearing mode, adopted approximate close-type shear principle, transverse shearing.
Because the smoothly movement, the wallop of the blade is small so the using life is 3 to 4 times of the mechanical shears.
Cold shear section vertically≤1.5°, the weight error of ±0.3%
Technical parameters
Parameters/types | Max Shear Force （KN） | Max Shear Diameter（mm） | Stroke Height（mm） | Barrier scope（mm） | Frequency（round/min） | Roller bed length（m） | Motor Power (KW) |
X-Q41Y-100 | 1000 | 50 | 20-60 | 40-200 | 15-25 | 8 | 22 |
X-Q41Y-200 | 2000 | 70 | 20-60 | 50-350 | 15-23 | 8 | 37 |
X-Q41Y-350 | 3500 | 90 | 50-100 | 55-350 | 12-18 | 8 | 45 |
X-Q41Y-500 | 5000 | 110 | 60-130 | 60-350 | 10-15 | 8 | 45 |

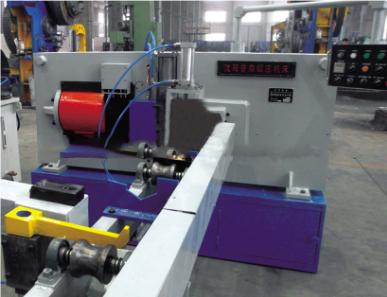

Product use
Suitable for all kinds of flat steel, square steel, spring steel , etc. The shear.
Technical Features
The body uses the steel plate overall welding structure.
Pneumatic friction clutch and brake, has the overload protection function.
Electrical PLC program control.
Progressive motor type glycerol lubrication.
Flat steel, spring steel cold shear plane vertical degree 1 or less, the weight of error of plus or minus 0.5% or less.
With automatic feeding, automatic cutting, automatic counting, segmented keep-off, automatic output, quick change the blade, and other functions, and there is insufficient pressure automatic parking, feed does not reach the designated position is not shear, poor lubrication is not boot ,etc.
Technical advantages
The Min shear size 10x100(mm). Max shear size 130x100（mm）, especially in shear than the thickness of 20MM material than other shear equipment has obvious advantages.
A high degree of automation, reducing labor and labor intensity.
