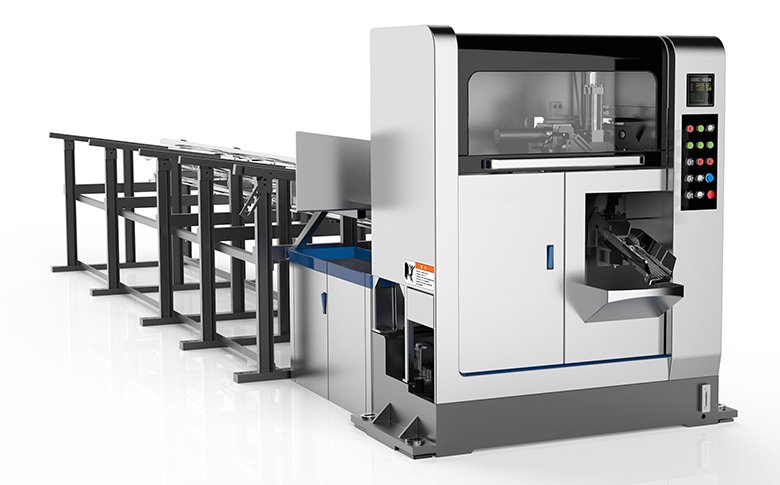

mmSawing Capacity | SY-75NC |
Bar ● | 8 ~ 72 mm |
Angle ▓ | 8 ~70 mm |
Round Tube ○ | 8 ~ 72 mm |
Square Tube □ | 8 ~ 70 mm |
Head Spindle |
|
TCT tungsten carbide circular saw blade | Ø250 x 2.0 t mm/Ø285 x 2.0 t mm |
HSS circular saw blade for HSS | ø 250 -285/2.0- 3t mm (max.) |
Saw blade rotation | 50 ~ 180 rpm / Variable speed |
Sawblade debris remover | Round steel brush |
Motor |
Axle actuates motor | 7.5kw (10Hp) / 4p |
AC servo motor_head | 1.5kw |
AC servo motor_feeding mechanism | 1kw |
Oil pressure drive motor | 2.2 kw / 4p |
Cutting fluid motor | 0.19 kw / 4p |
Oil preesure installation |
Oil pressure driving pressure | Oil pressure driving pressure |
Tank capacity | Tank capacity |
Pneumatic device |
Operation pressure | Operation pressure |
Fixed-inch feeding (GFC) mechanism |
Cutting length | Cutting length |
The residual material length | The residual material length |
Feeding length | Feeding length |
Other |
Size (L x W x H) | 7020 × 2485 × 1825 mm |
Weight/main engine | 2020 kgs |
Weight/stock rack | 780 kgs |
