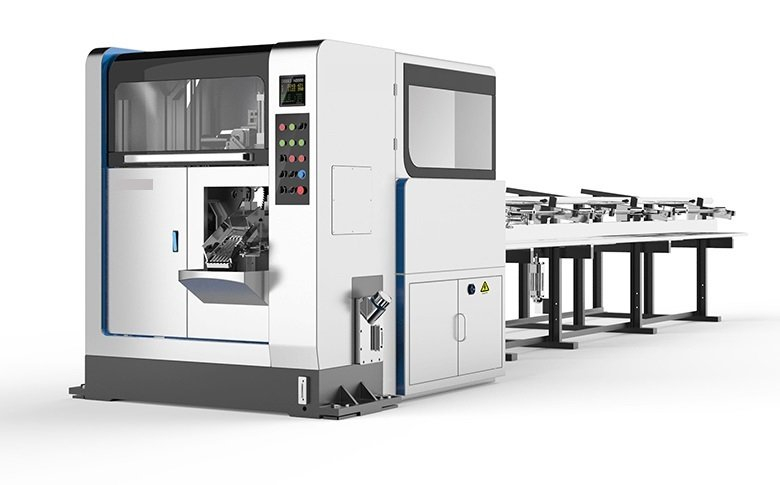

mmSawing Capacity | HY-65NC |
Bar ● | 8 ~ 65 mm |
Angle ▓ | 8 ~60 mm |
Round Tube ○ | 8 ~ 65 mm |
Square Tube □ | 8 ~ 60 mm |
Head Spindle |
|
TCT tungsten carbide circular saw blade | Ø250 x 2.0 t mm/Ø285 x 2.0 t mm |
HSS circular saw blade for HSS | ø 250 -285/2.0- 3t mm (max.) |
Saw blade rotation | 60 ~ 160 rpm / Variable speed |
Sawblade debris remover | Round steel brush |
Motor |
Axle actuates motor | 7.5kw (10Hp) / 4p |
AC servo motor_head | 1.5kw |
AC servo motor_feeding mechanism | 1kw |
Oil pressure drive motor | 2.2 kw / 4p |
Cutting fluid motor | 0.19 kw / 4p |
Oil preesure installation |
Oil pressure driving pressure | 70 kg/cm2(7 MP a) |
Tank capacity | 90 liters |
Pneumatic device |
Operation pressure | 4 ~ 6 kg/cm2(55 ~ 85 psi) |
Fixed-inch feeding (GFC) mechanism |
Cutting length | 8~99mm |
The residual material length | 80+α(α is Not enough length for an artifact) |
Feeding length | 800mm(single) |
Other |
Size (L x W x H) | 6980 × 2450 × 1750 mm |
Weight/main engine | 1950 kgs |
Weight/stock rack | 750 kgs |
