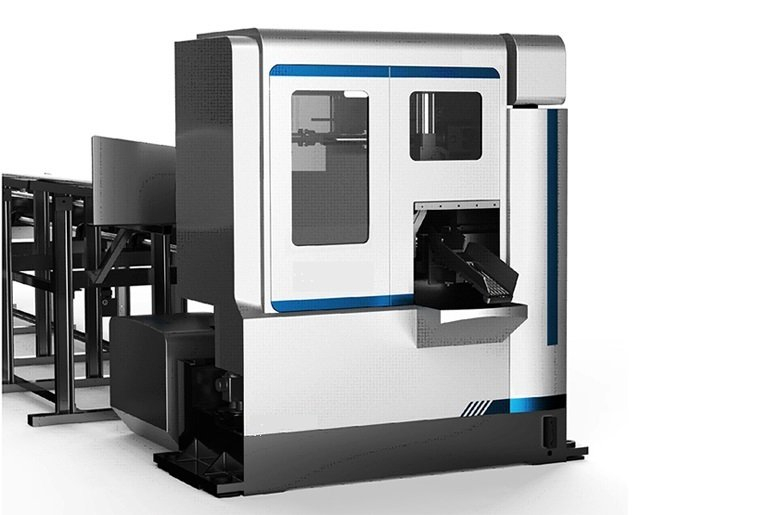

SY-100NC

mmSawing Capacit

MM

Circular saws of copper and aluminum tungsten steel

Bar

MM

●20~100

Angle

MM

■20 ~ 90

Rectangle

MM

▃▃20 ~ 90

Round tube

MM

○20 ~ 100

Square tube

MM

□20 ~ 90

The first cut residual legth

MM

10 ~ 60

Leftover materials length

MM

55~(55+πcutting length)

Feeding length

MM

5 ~ 600 Continuous cycle action

Rack bearing

KG

2500

Materials length

MM

2000 ~ 6000

Materials Width

MM

950

TCT super hard tungsten steel circular saw blade

MM

--

Pin hole + aperture

MM

--

Use TIP aluminum tungsten steel circular saw blade

MM

330 Ø x 1.7-3.0~355 x 2.2~3.0
Ø355 x 3.0(Standard)

Pin hole + aperture

MM

4 x Ø 11 x PCD63 x Ø 25.4
( Ø32 Special )

HSS circular saw balde

MM

--

Spindle motor

KW

11 kw (15HP)

Speed of mainshaft

RPM

2600 ~ 3500

Transducer

KW

11kw or 15kw (15HP or 20HP)

Hydraulic motor

KW

2.2 kw (3 HP x 4P)

Hydraulic pressure

MPA

7mpa 70kg/cm2

Hydraulic Tank Capacity

L

Around 120

Pressure force

MPA

0.4 ~ 0.6mpa 4 ~ 6kg/cm2

Feeding system

AC servo motor (1.3 kw or 1.5kw)+precision ball screw

Saw blade feed mode

AC servo motor (1.8kw or 2.0kw) + ball screw servo feed

Feed clamp

Parallel oil pressure type

The clamp

Parallel oil pressure type /upper pressure oil pressure type each group

Measure

MM

6860 x 1889 x 1530

Weight (machine stage + materials rack）

KG

　　　　　　   2800
