Product use

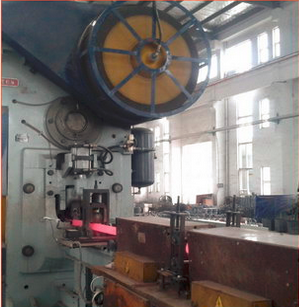

Rod material temperature（thermal）shear production line is the product of a precision mechanical and electrical integration technology. It is widely used in bearing , automobile, metallurgy, petroleum forging industry, is a high temperature（heat） ideal shear bar.
Technical Feature

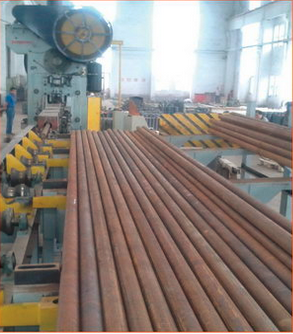

Feeding system is not on the rack and forced feeding device, can realize automatic feeding, automatic feeding function.
Intermediate frequency induction heating device is provided with an infrared thermometer, PLC control , automatic temperature control function.
Stopper with motor can retreat mechanism, can achieve near zero, far point infinite automatic shear function.

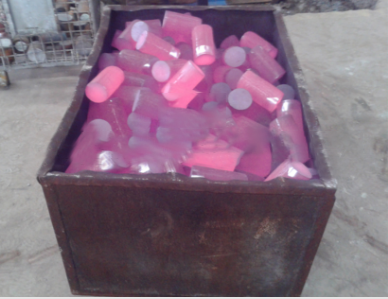

Sorting mechanism, can realize the finished material and remnants of automatic sorting function.

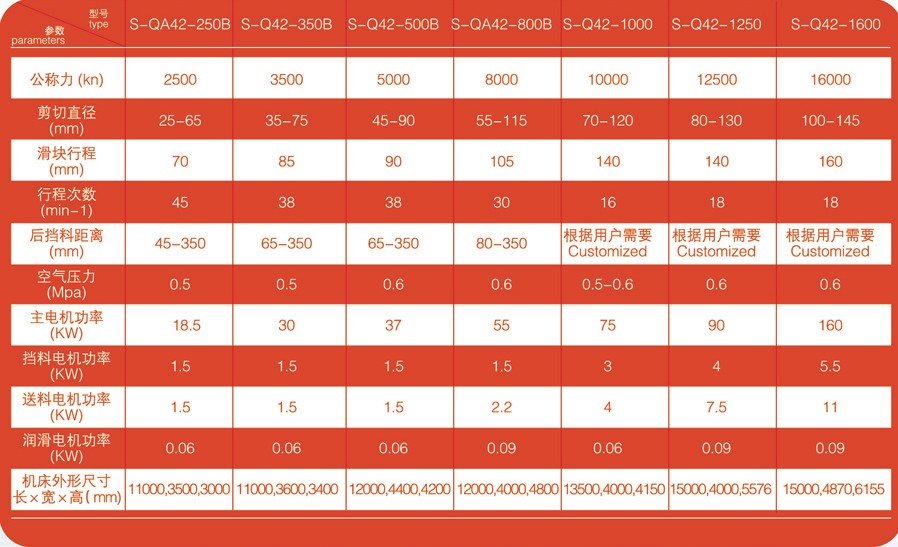

Technical parameters
Technical advantages
The main machine is integrally welded structure, with sufficient strength and rigidity , good precision,
Drive tow transmission, transmission is fast, stable, low noise.
Slide with rectangular inlay just guide, strong wear resistance.
Slide core-pulling type quick changing blade structure, ATC safety, quick and convenient.
The pneumatic friction clutch and rake forced circulation cooling water. Flexible and reliable operation, convenient repair.
That eccentric force pressing structure, pressing force, the shearing precision is high, safe and reliable.
