Strong impact force, fast strike speed, accurate control of strike energy.
The power head adopts tubeless integrated valve body, which has simple structure and low failure rate, avoid oil and gas channeling.
Achieve the hammer actions as hit, return, slow up, slow down and hang at any position.
Multiple strike modes, light operation and low labor intensity of workers.
Flexible design of hammer rod, more than double life.
Filled with hydraulic oil in all cavities of master cylinder, the working environment of its seals has been greatly improved, and the service life were longer.
Low energy consumption, low noise, energy saving and environmental protection.

Model Item	Single Arm Fully Hydraulic Open Die Forging Hammer
Model Item	C61Y-30 1T	C61Y-45 1.5T	C61Y-75 2T	C61Y-125 3T	C61Y-150 4T	C61Y-180 5T	C61Y-220 6T	C61Y-280 8T	C61Y-340 10T	C61Y-420 12T
Hit energy（KJ)	30	45	75	125	150	180	220	280	340	400
Weight of the falling part (KG)	1000	1500	2500	3200	4200	5500	6500	8500	11000	12500
Design stroke(mm)	910	1100	1150	1350	1400	1850	1900	1900	2200	2200
Distance to harmmer body (mm)	570	800	860	960	1100	1200	1200	1400	1400	1400
Work distance (mm)	1560	1850	1910	2210	2210	2220	2220	2300	2570	2570
Lower anvil height (mm)	720	720	720	750	750	800	800	850	900	900
Oil pump Model	A2F160R2P3
Accumulator size (mm)	Ø180	Ø180	Ø180	Ø220	Ø220	Ø220	Ø220	Ø220	Ø250	Ø250
Strike frequency(/minute)	75	70	75	65	65	60	50	50	45	54
Main motor (KW)	55X1	75X1	55X2	55X3	55X4	55X5	55X5	55X6	55X8	55X9
Tank volume (M³)	2.7	2.7	3	4.5	5	7	7	8	9	9
Total weight of the anvil assembly (Tons)	10	15	20	35	45	60	70	100	130	150

Note:

Due to the continuous improvement and development of our products, the structure and parameters of our products are subject to change without notice. The specific technical parameters are subject to documents provided with equipment. If you have any questions, please contact our technical support.

Contrast Table of Electro-hydraulic Hammer and Traditional Hammer
Serial No.	Steam/air hammer	Full hydraulic electric hydraulic hammer
1	Energy efficiency is 1-3%, even as low as 0.2%. High cost.	Energy efficiency reach 20%-30%. Low cost.
2	Using coal (or electricity) as energy source, compressed steam (or air) as medium	Using electricity as energy source, hydraulic oil as medium
3	The strike energy comes from the work done by compressed steam or air and the work done by gravity of the falling part.	The strike energy comes from the work done by high-pressure oil and the work done by gravity of the falling part.
4	Gas leakage	No oil and gas channeling, high service life of hammer rod seal.
5	Shortage and instability of strike energy	Stroke Energy is full and stable
6	Big noise, environmentally unfriendly	Small noise, environmentally friendly
7	The air compressor must be opened before opening the equipment.	Start and stop at any time
8	Poor working environment	Good working environment

Upgrading by Full Hydraulic Power Head

Our company's full hydraulic hammer power head system includes full hydraulic power head, hydraulic station, gas cylinder group, electrical control cabinet and corresponding oil and gas connection pipeline. It is suitable for the upgrading of steam hammer, pneumatic hammer and old hydraulic hammer. By retaining the anvil block and the hammer frame of the original hammer, reforming the X guide rail and installing a new full hydraulic power head system, the old hammer becomes a full hydraulic hammer with advanced performance, small investment, short cycle and high benefit.

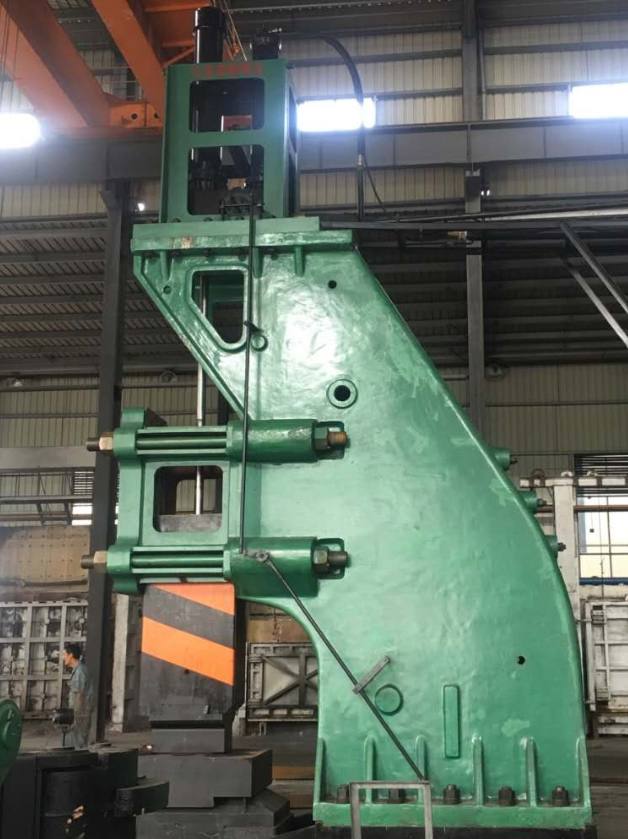

Hydraulic single arm electro-hydraulic hammer1

Full hydraulic power head Hydraulic station

The advantages after upgrading are as follows:

1. Hit energy is large, hit speed is fast and frequency is high.

Using 12.5-14 MPa high pressure oil, personalized design can be used to increase the impact energy by more than 20% on the basis of the original hammer, and the speed is fast. Short stroke design can be used to achieve higher strike frequency.

2. Simple structure, the failure rate is very low and the maintenance is convenient.

The power head adopts tubeless integrated valve body, which has simple structure, low overall maintenance frequency and avoid oil and gas channeling.

3. Low energy consumption, energy saving and environmental protection.

Accurate impact energy control and advanced hydraulic system design greatly reduce the noise and energy consumption of forging hammer.

4. Light operation, low labor intensity and low cost.

There are a variety of strike modes, responsive, programmable strike can be achieved, easy to operate, reduce the labor intensity of workers. Cancel air compressor, reduce maintenance cost and manpower.

5. High safety.

The power head has a special shock absorption system, which greatly reduces the impact force of the hammer when it returns quickly. Multiple safety designs in whole hydraulic system.

6. Upgrading cycle is short, investment is small and benefit is high.

Upgrading of steam/air forging hammer with power head for full hydraulic hammer saves time and money, and reduces energy consumption by 40-50% compared with the original hammer. The number of motor units put into operation can be selected according to the working conditions, which is more energy-saving and benefit obviously.
